Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode

Name: Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Brand: BINGSHENG
Price: 1 USD

China Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode wholesale

Warranty : 1 year

Customized support : OEM, ODM

Place of Origin : Henan, China

Brand Name : BINGSHENG

Model Number : BSK-ORP-100

Product name : Digital ORP sensor

Resolution : 1mV

Data communication : Rs485(MODBUS-RTU)

Temp measure range : 0.0~60.0℃,≤ 85% RH

Power consumption : ≤ 0.5W

Applicable scope : Environmental protection, Sewage, Online detection

Accuracy : ±0.02pH

Type : ORP Sensor

Packaging Details : A5 standard export carbon

Supply Ability : 10000 Piece/Pieces per Month

Price : Discussion

Contact Now

Product Description

FEATURES: 1.Adopt solid electrolyte, 0.4MPa pressure.
2.Easy to use without adding electrolyte.
3.Solid electrolyte salt bridge can prevent electrode poisoning effectively, such as S²ˉ,CNˉ.
4.Adopt antifouling annular Teflon liquid junction, hard to clog, long-term online detection.
5.Adopt different sensitive membrane electrode for PH measurement under various conditions. Low inner resistance electrode, fast response and high stability.
6.Adopt standard Pg13.5 screw thread, suitable for piping erection.

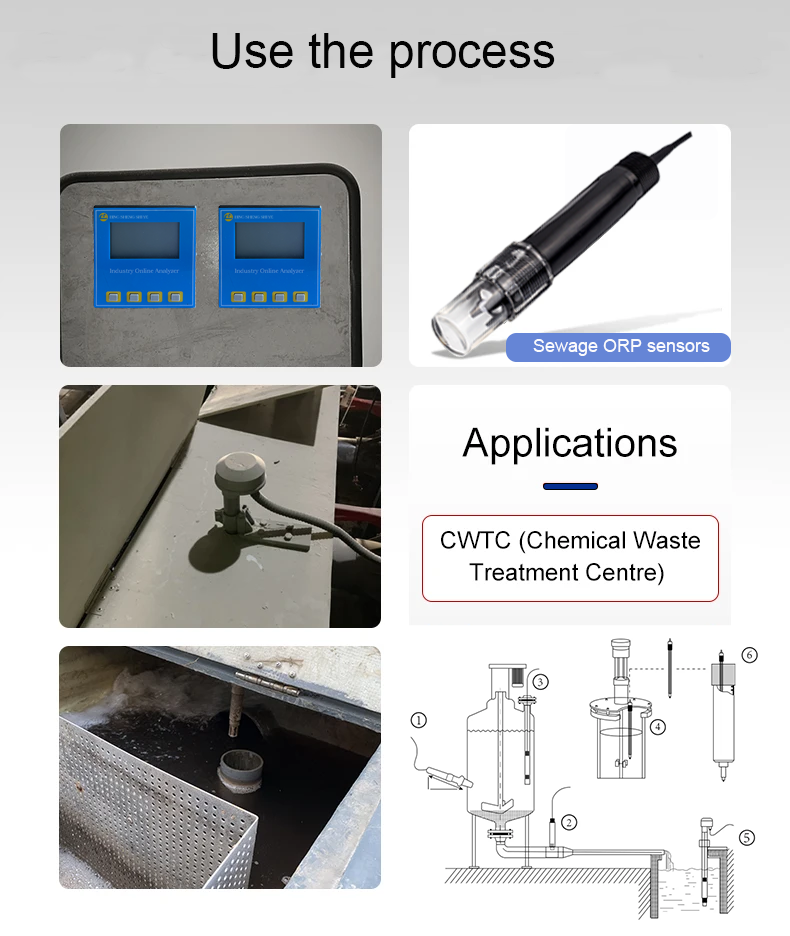

Working principle: Electrochemical sensor Applicable scenarios: sewage, river water, secondary water supply, lake water monitoring

Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode

Specification

Product name	Digital sensor
Resolution	±0.01 pH
Accuracy	±0.02pH
Waterproof Rate	IP68
Measurement range	A: Voltage signal (choose one from 0-2V, 0-5V, 0-10V)
		B: 4-20mA (current loop)
		C: RS485 (standard Modbus RTU protocol, device default address: 01) Power supply voltage: 7-24V DC (when the output signal is 0-2V, RS485) 12-24V DC (when the output signal is 0-5V, 0-10V, 4-20mA) (Customizable 3.3-5V DC)
Temperature range	Temperature: 0~60℃; Humidity ≤ 85% RH
Power consumption	≤ 0.5W
Cable Length	5m standard cable, other length can be optional;
Guarantee Period	12 months
